DESCRIPTION

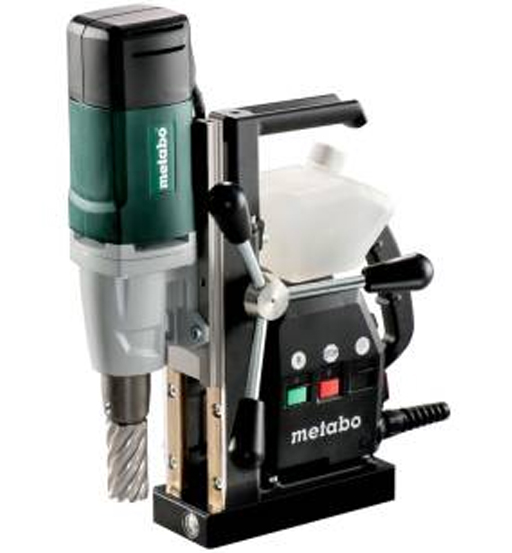

• Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
• Magnetic base with high holding power permits working on vertical surfaces and overhead
• Robust Metabo marathon motor with internal wiring for long service life
• Integrated coolant container for easy to dose internal cooling of the core drill
• Bright LED light for easy alignment in poor light conditions
• Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
• Protective circuit starts motor only if the magnet is activated
• Restart protection: prevents unintentional start-up after power supply interruption
• Lockable slide for comfortable tool change
• Handle for easy carrying and lifting
• Resistant mains cable (5 m) with rubber shroud

SPECIFICATION

• Rated input power1000 W
• Output power520 W
• Max. drill-Ø with core drill32 mm / 1 1/4 "
• Max. drill-Ø with spiral drill13 mm / 1/2 "
• Maximum drilling depth50 mm / 2 "
• No-load speeds700 rpm
• Speeds at rated load450 rpm
• Bit retainerWeldon shaft 19 mm (3/4")
• Weight11.9 kg / 26.2 lbs
• Cable length5 m / 16 ft
• Torque50 Nm // 443 in-lbs
• Max. depth of feed160 mm / 6 5/16 "
• Max. magnetic holding force12250 N
• Dimensions of the magnet base90 x 189 mm // 3 9/16 x 7 1/2 "
• Height carriage lowest position343 mm / 13 1/2 "
• Height carriage topmost position490 mm / 19 9/32 "

Vibration

• Drilling in metal2.5 m/s²
• Uncertainty of measurement K1.5 m/s²

Noise emission

• Sound pressure level85 dB(A)
• Sound power level (LwA)98 dB(A)
• Uncertainty of measurement K3 dB(A)
