SKU Number: UP202

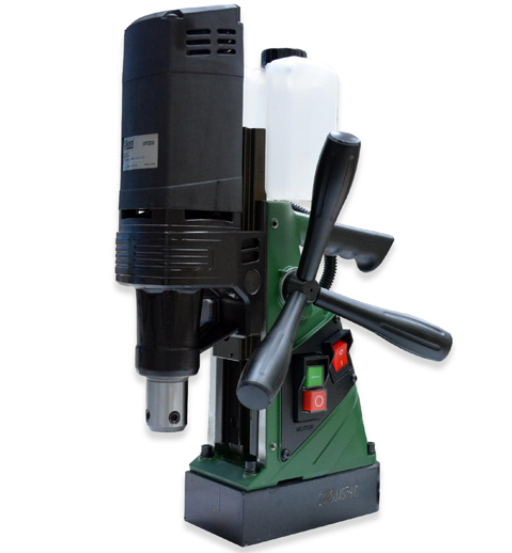

MAGNETIC DRILLING MACHINE 120-UKEN
Availability: In Stock
Your order will be delivered within 2 to 7 business days.
DESCRIPTION
Magnetic drills are characteristic of constant power over-loading protection and infinitely viable speed transmission etc.
Guide lubrication system: guide internal storage design, which can make the guide parts has been in the lubrication state, prolong the service life of guide rail
High magnetic adhesion
SPECIFICATIONS
- Load rpm:80/125/175/300rpm
- Motor rated power:2500W
- Tool holder:MT4
- Voltage:AC 220~240V
- Power frequency:50~60Hz
- Magnetic adhesion:20000N
- Max.cutting dia(Annular cutter):120mm/4-3/4”
- Max.cutting dia(Twist drill):42mm/1-11/16”
- Max.cutting depth:100mm/4”
- Whole machine size:440mmX250mmX580mm
- Magnet footprint:280mmX115mm
- Weight:36.5Kg
AED 5700
