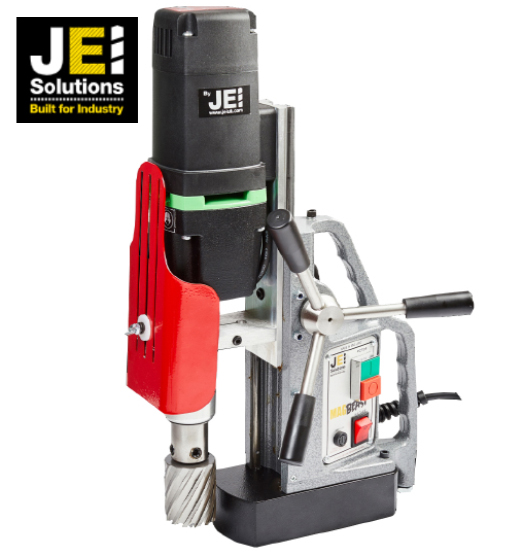

JEI MAGNETIC DRILLING MACHINE 230V HM50

JEI MAGNETIC DRILLING MACHINE 230V HM50

SKU Number: JEIHM50

Heavy duty 1150 watt motor - enables larger cutting capacity.
Weighs only 13kg with a 50mm cutter capacity - unrivalled weight to cutting capacity ratio
150mm total drill travel - facility to use extra long cutters.
Maintenance friendly twin slide rails - no wearing parts and adjustment free operation.
Spindle - MT2
Weight - 13kg
Max Stroke - 150mm
Cutter Capacity - 50mm x 100mm depth of cut
Twin Drill Capacity - 13mm with 2MT Chuck / 23mm with 2MT Twist Drill
Countersink Capacity - 40mm
Motor - 1150 watts
RPM - 2 fixed: No Loads 465/270 RPM. Loaded 250/450 RPM
Height min/max - 410mm / 560mm
Length - 280mm
Width - 120mm
Magnetic base Dimensions - 85mm x 180mm
Magnet dead lift - 1250kg on 25mm plate
Noise Level - Does not exceed 95 dB
