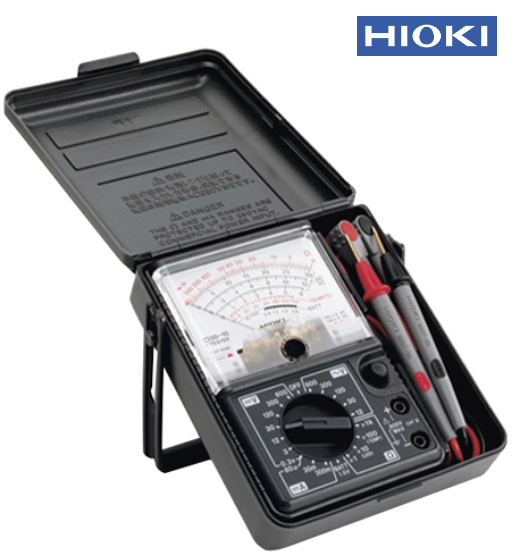

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
Key Features
• Drop proof design withstands drop onto a concrete floor from a height of 1 meter
• LED check, Battery check support
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
|
DC voltage range |
0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) |
|
AC voltage range |
12 V (9 kΩ/V) Accuracy: ±4 % f.s. |
|
DC current range |
60 µA/30 m/300 mA (300 mV internal voltage drop) |
|
Resistance range |
0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k |
|
Battery check |
0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s. |
|
Temperature scale |
Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers. |
|
Power supply |
For resistance measurement range, R6P (AA) ×2 batteries |
|
Dimensions and mass |
95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz) |
|
Accessories |
Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1 |
