Quick Response Comparator Offering Reading Stability in High-speed Digital Format

(Wireless Adapter Z3210 not included)

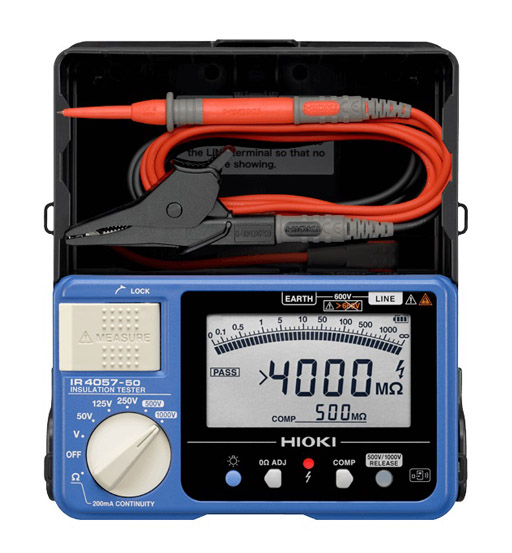

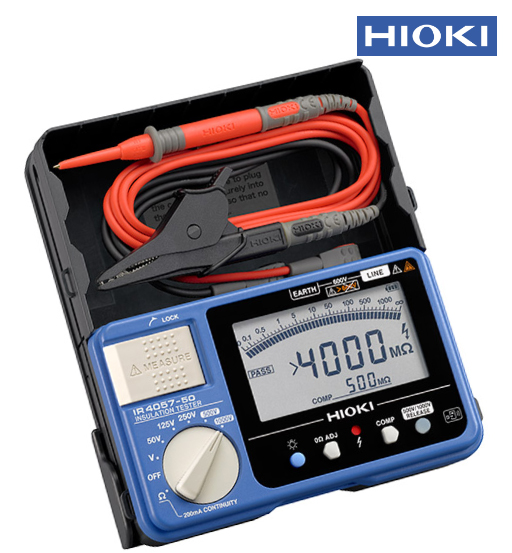

Hioki insulation testers or megohmmeters feature all-in-one designs including?built-in rugged cases and test lead storage compartments. The IR4057-50 is a 5-range, 50 V to 1000 V digital insulation resistance tester with bargraph, and delivers efficient functions and features to help shorten work time associated with field insulation testing.

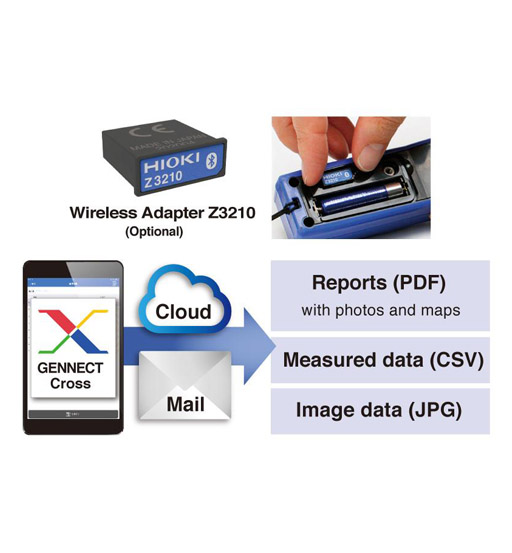

Easy! Just connect the optional Z3210 Wireless Adapter to your Hioki compatible instrument, to make it Bluetooth® ready.

Wirelessly connect Hioki-compliant instruments with a simple connection.

Transmit measured values to your tablet or smartphone.

Product Video https://youtu.be/IN1JfKM6DGk

For Purchase https://finetoolsuae.com/products/hioki-wireless-adaptor-z3210

Key Features

Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)

5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ

Digital bar graph

Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions

Drop proof onto concrete from 1m (3.28 feet)

Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10)

Continuity check via 200 mA testing

Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles

Data can be downloaded to tablets and smartphones using Hioki’s dedicated free app "GENNECT Cross," available from the Google Play or App Store.

Wireless support: Wireless communication capability for even greater convenience than legacy model

Compatible with Wireless Adapter Z3210 (optional). It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Instantly create reports by a free app (GENNECT Cross)

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.

The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand written memos.

Optional Wireless Adapter Z3210 is necessary.

Easily transfer measurement data to an Excel® file

Excel® Direct Input function allows you to input measurement values directly and automatically into an Excel® file once the instrument's auto-hold function is activated. (Wireless Adapter Z3210 is necessary)

Product Video https://youtu.be/igoYcBRno6Y
