SKU Number: 4800324000

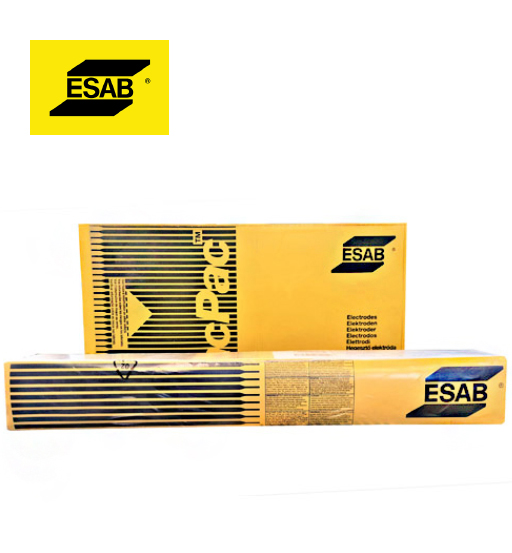

ESAB ELECTRODE 7018 OK 48 3.2MM X 450-PACKET OF 6KG

Availability: In Stock

DESCRIPTION

A reliable, general purpose electrode for manual metal arc welding of carbon steels, carbon manganese steels and fine-grained carbon manganese steels with elevated yield strength. OK 48.00 deposits a tough, crack-resistant weld metal. The coating is of the low moisture absorption type. High welding speed in the vertical-up position. OK 48.00 is insensitive to the composition of the base material within fairly wide limits. The electrode can be used for welding structures where difficult stress conditions cannot be avoided. Tested according to NACE TM0177 and TM0284. Diffusible Hydrogen tested in various conditions show values below 3 ml/100g.

HIGHLIGHTS

  • H4 R approved
  • Low diffusible hydrogen to reduce the risk for cold cracking
  • Outstanding low moisture pick up
  • High efficiency bringing productivity
  • Extremely good weldability in vertical up position
  • Exceptional weld appearance

INDUSTRIES

  • Civil Construction
  • Energy
  • Industrial and General Fabrication
  • Light Fabrication
  • Marine and Offshore

SPECIFICATIONS

  • Diameter: 3.2 x 350.0 mm(1/8 x 13.8 in.)
  • Amps:90-140 A
  • Volts:23 V
  • Fusion time per electrode at 90Per I max:85Sec
  • Deposition rate at 90Per: 1.33 kg/h(2.9 lbs/h)
  • Efficiency (Per):73%
  • Number of electrodes/kg weld metal:31
