DESCRIPTION

• Electronics provide e-clutch, power-up and overload protection
• Two speed gearbox for increased versatility when drilling in wood, metal and concrete with standard drill bits
• Heavy duty 16mm steel chuck allows quick bit change whilst offering excellent bit retention
• New motor gives improved performance in applications with dry core bits up to 127mmn in bricks or soft masonry
• Innovative mode selection collar allows intuitive control for optimal performance
• Electro-Mechanical clutch increases user control and protection

SPECIFICATIONS

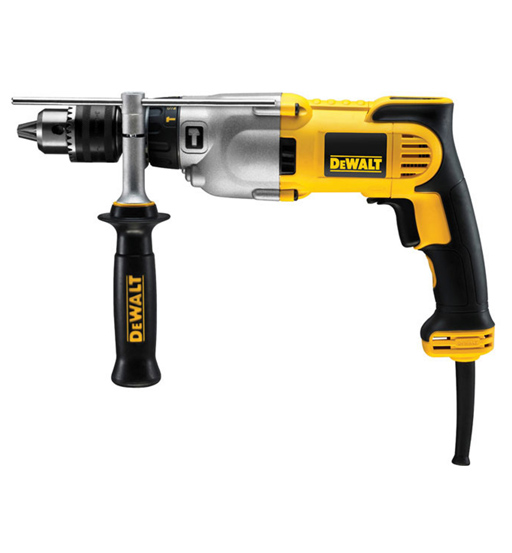

• ITEM NAME: Diamond Drill
• MODEL:D21570K-B5
• MANUFACTURER: Dewalt
• COLOR: Yellow and Black
• INPUT POWER (WATTS):1300W
• RPM (NO LOAD):0-1250/3500
• DRILL CHUCK CAPACITY: 16mm
• SOUND PRESSURE UNCERTAINTY: 3 dB(A)
• SOUND PRESSURE LEVEL: 93 dB(A)
• DRILLING CAPACITY - MASONRY: 127mm
• DRILLING CAPACITY - CONCRETE: 22mm
• HEIGHT :215mm
• VOLTAGE: 220V
• SPINDLE THREAD SIZE: 1/2 Inch x 20 UNF
• CHUCK TYPE: Keyed
• COLLAR DIAMETER:43mm
• VIBRATION DRILLING: 16 sq.m/s
• SOUND POWER LEVEL UNCERTAINTY: 3 dB(A)
• POWER SOURCE TYPE: Corded
• LENGTH: 380mm
• UNCERTAINTY (K):3 sq./s
• SOUND POWER LEVEL: 104 dB(A)
