SKU Number: 335-6 IP67

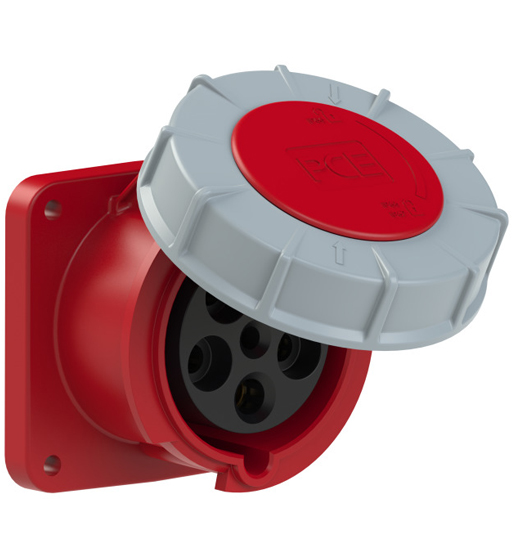

PCE PANEL SOCKET 63A 5PIN(STRAIGHT)

Availability: In Stock

Your order will be delivered within 2 to 7 business days.

  • CEE-flanged socket straight (100x100) 63A 5p 6h IP67 POWER TWIST
  • housing material: PA6
  • rated current: 63A
  • number of poles: 5 (3P+N+PE)
  • clock-position: 6h
  • rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
  • contacts: brass, with lamellar spring (CuBe)
  • connection technology: frame terminals with screws
  • dimensions (flange/fixing center): 100x100 mm / 80x80 mm
  • IP protection class: IP67
AED 92
