SKU Number: 434-6

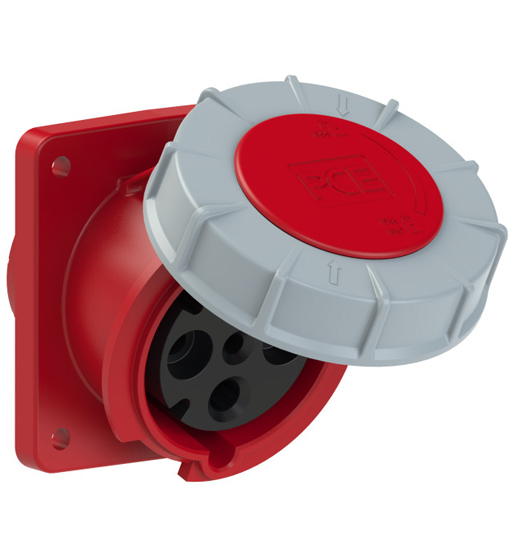

PCE PANEL SOCKET 63A 4PIN IP67

Availability: Out of Stock

Product may be available upon request. Please contact us on WhatsApp or email for more details

  • CEE-flanged socket sloping (100x112) 63A 4p 6h IP67 POWER TWIST
  • housing material: PA6
  • rated current: 63A
  • number of poles: 4 (3P+PE)
  • clock-position: 6h
  • rated voltage/frequency: 380-415V~ / 50+60Hz
  • contacts: brass, with lamellar spring (CuBe)
  • connection technology: frame terminals with screws
  • dimensions (flange/fixing center): 100x112 mm / 80x88 mm
  • IP protection class: IP66/IP67
AED 86
Size :
