SKU Number: 324-6

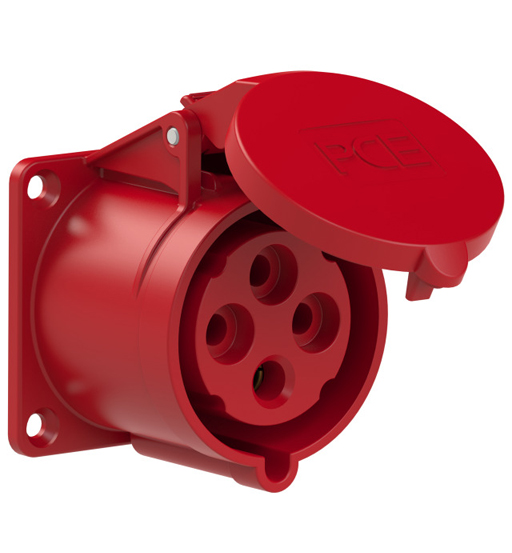

PCE PANEL SOCKET 32A 4PIN IP44
Availability: In Stock
Your order will be delivered within 2 to 7 business days.
- CEE-flanged socket straight (70x70mm) 32A 4p 6h IP44
- housing material: PA6
- rated current: 32A
- number of poles: 4 (3P+PE)
- clock-position: 6h
- rated voltage/frequency: 380-415V~ / 50+60Hz
- contacts: brass
- connection technology: screw terminals
- dimensions (flange/fixing center): 70x70 mm / 56x56 mm
- IP protection class: IP44
AED 23
