SKU Number: 323-6

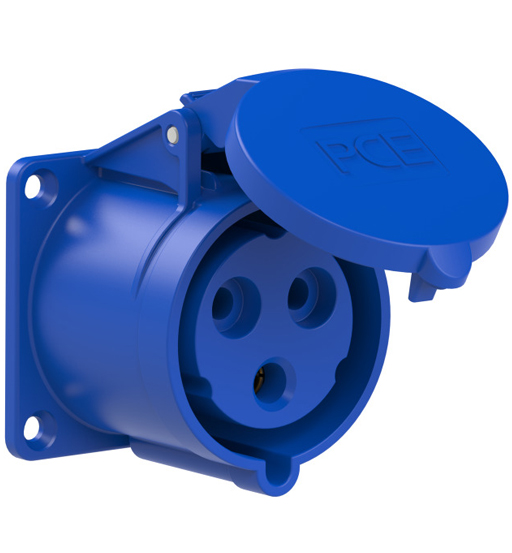

PCE PANEL SOCKET 32A 3PIN 220V(STRAIGHT)

Availability: In Stock

Your order will be delivered within 2 to 7 business days.

  • CEE-flanged socket straight (70x70mm) 32A 3p 6h IP44
  • housing material: PA6
  • rated current: 32A
  • number of poles: 3 (2P+PE)
  • clock-position: 6h
  • rated voltage/frequency: 200-250V~ / 50+60Hz
  • contacts: brass
  • connection technology: screw terminals
  • dimensions (flange/fixing center): 70x70 mm / 56x56 mm
  • IP protection class: IP44
AED 22
