SKU Number: 415-6

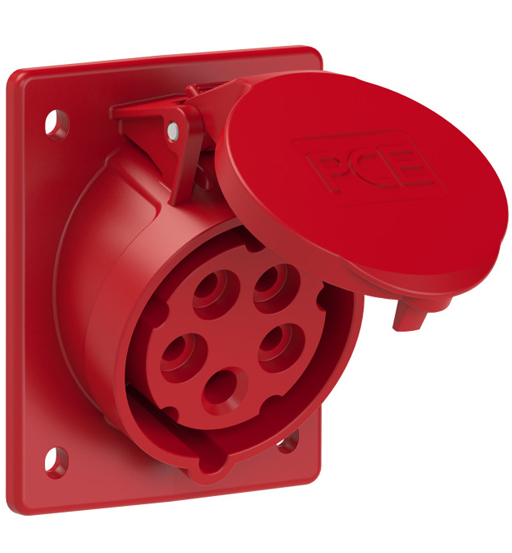

PCE PANEL SOCKET 16A 5PIN 380V(ANGLE)
Availability: In Stock
Your order will be delivered within 2 to 7 business days.
- CEE-flanged socket sloping (80x97mm) 16A 5p 6h IP44/IP54
- housing material: PA6
- rated current: 16A
- number of poles: 5 (3P+N+PE)
- clock-position: 6h
- rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
- contacts: brass
- connection technology: screw terminals
- dimensions (flange/fixing center): 80x97 mm / 60x73 mm
- IP protection class: IP44/IP54
AED 16
