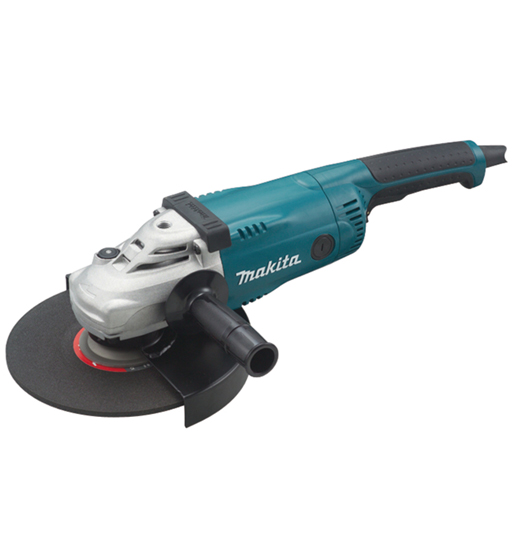

Powerful high-capacity machine for cutting and grinding

Suitable for demanding professional applications. Powerful 2 200 W motor and large 230 mm blade diameter for extremely high cutting and grinding capacity. The machine has an AVT vibration damped side handle and a keyless blade change.

TECHNICAL SPECIFICATIONS

• Maximum Output Power 2400 W
• No load speed 6600 min-¹
• Max. Depth of Cut 68 mm
• Spindle Thread M14
• Bore Size (Arbor Diameter) 22, 23 mm
• Grinding Disc Diameter 230 mm
• Power Supply Cord 2, 5 m
• Sound Power Level (LWA) 101 dB (A)
• Sound Pressure Level (LpA) 90 dB (A)
• Noise Uncertainty (K Factor) 3 dB (A)
• Vibration Level (3 axes) 6, 5 m/s²
• Vibration Uncertainty (K Factor) 1, 5 m/s²
• Weight without Cable (EPTAProcedure 01/2003) 6, 3 kg
• Product Dimensions (L x W x H): 511 x 250 x 140 mm

USER BENEFITS

• Super flange: disk change without tool.
• Removable and rotatable 90 ° gearbox.
• AVT anti-vibration side handle.
