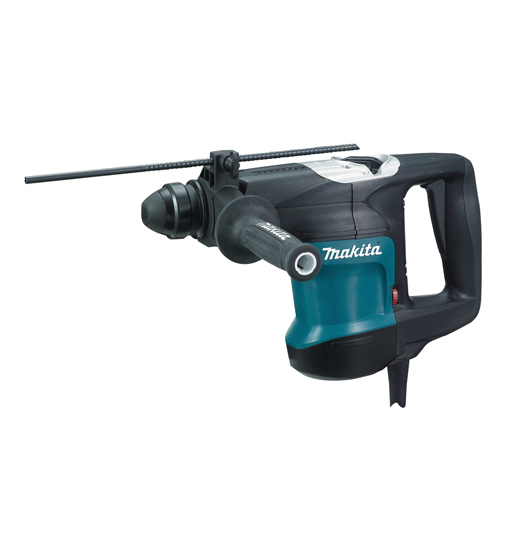

Three-mode, anti-vibration combination hammer with quick-change chuck for heavy-duty use

An efficient combination hammer for SDS-Plus bits. Suitable for impact and unstressed drilling, plus chipping. 850 W output and speed can be adjusted between 315 and 630 min-1. Impact energy of 5, 1 J and optimal drilling range of 10 – 22 mm in concrete. Max. Drilling capacity of 32 mm in concrete.

TECHNICAL SPECIFICATIONS

• Maximum Output Power 850 W
• No load speed 315 - 630 min-¹
• Impact 1650 - 3300 min-¹
• Max. Drilling Diameter in Wood 32 mm
• Max. Drilling Diameter in Concrete 32 mm
• Max. Drilling Diameter in Steel 13 mm
• Optimum Drilling Diameter Range in Concrete 10 - 22 mm
• Impact Energy 5, 1 J
• Drilling diameter with TCT core bit 90 mm
• Power Supply Cord 5, 0 m
• Sound Pressure Level (LpA) 89 dB (A)
• Noise Uncertainty (K Factor) 3 dB (A)
• Vibration Level (3 axes), Drilling ≤ 2, 5 m/s²
• Vibration Level (3 axes), Impact Drilling 18, 0 m/s²
• Vibration: Chiseling 12, 5 m/s²
